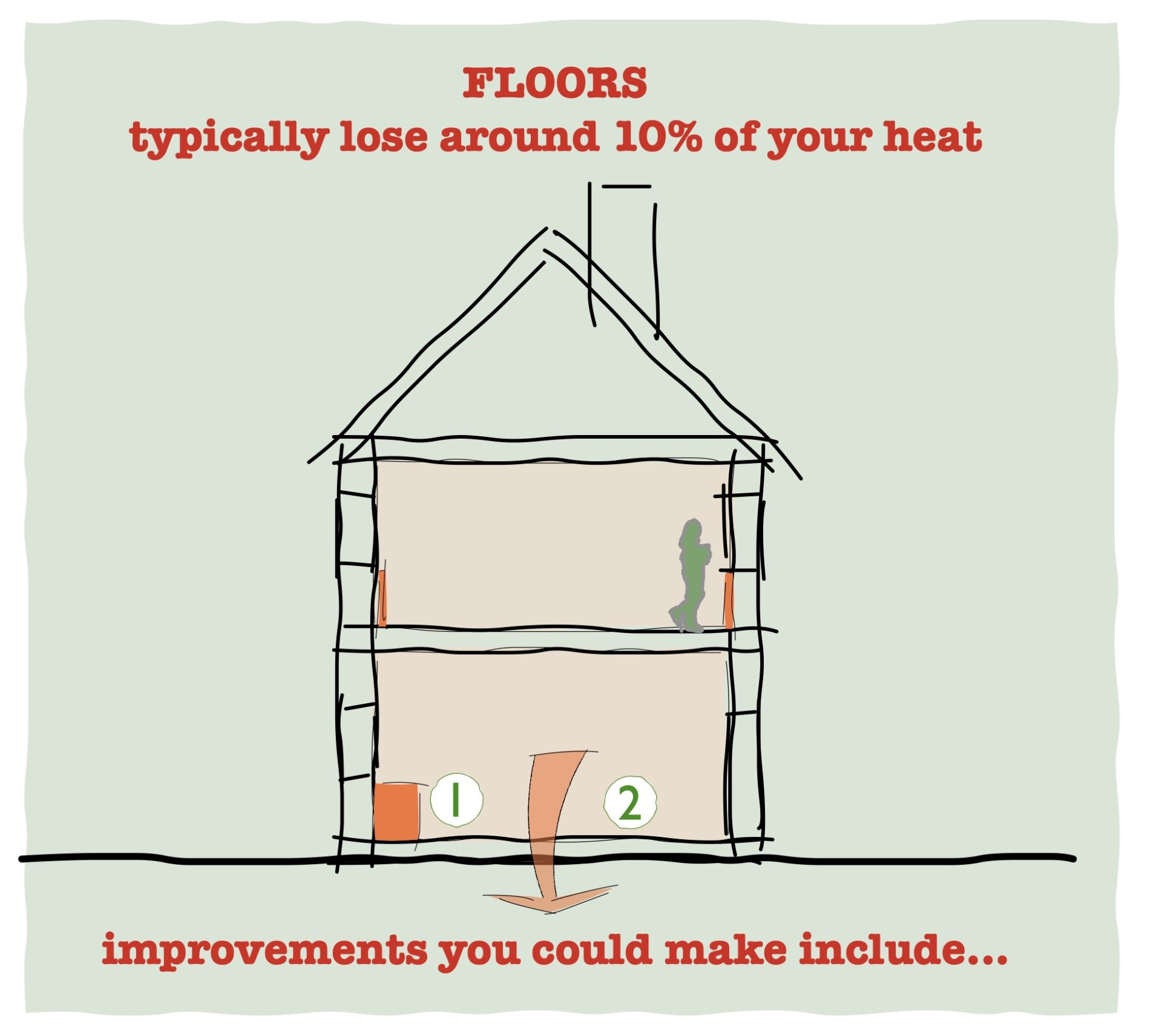

Floors

1

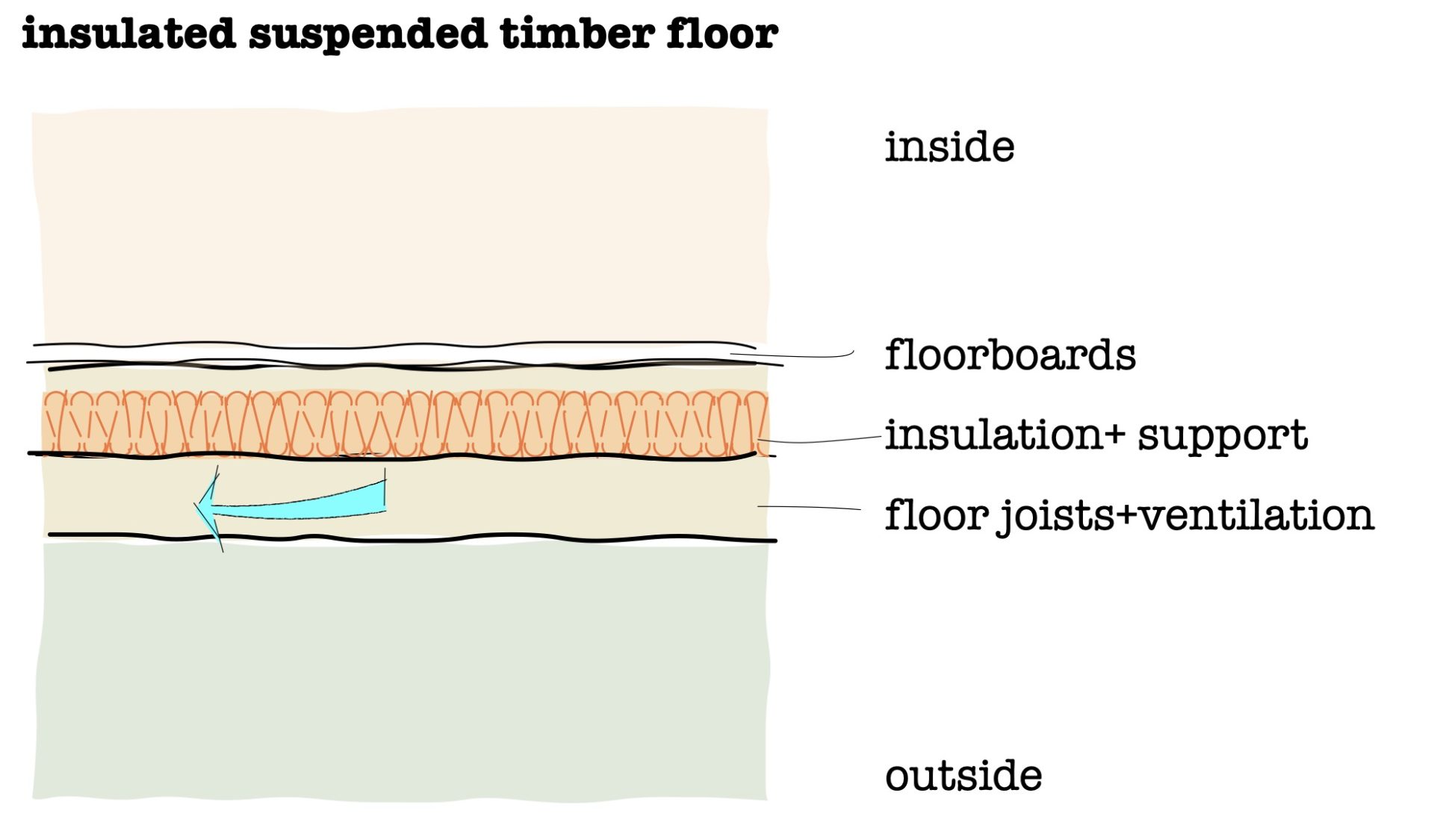

Suspended Ground Floors

These are common in homes built before the late 20th Century, and can be insulated and draught-proofed: from below, if you have access; or from above, if you don’t

Retrofit Opportunities: Consider insulating any floors that need repairing

Whilst Ground Floors conduct heat to the outside of the house, intermediate floors can also be leaky, as gaps in the boards can link to external gaps, and need draught-proofing.

2

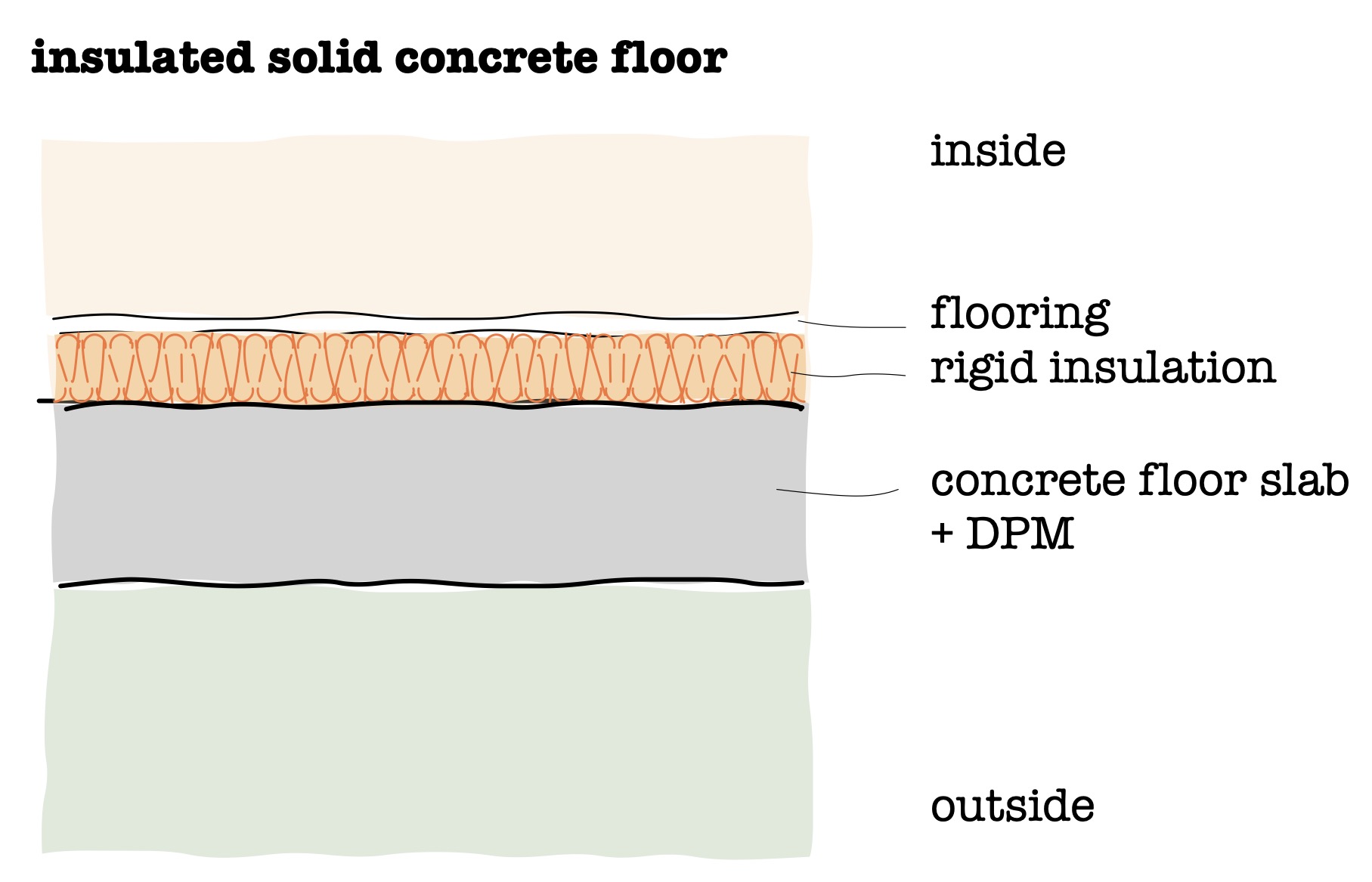

Solid Ground Floors

Late 20th Century [or later] homes will more likely solid concrete ground floors, which are generally harder to insulate than suspended timber ones. Unless undertaking a deep whole-house retrofit where you are contemplating re-laying your floors, the only option is to raise the floor level.

Adding say 50-100mm [2-4″] of rigid insulation over the solid floor, then fixing a floor finish – typically engineered timber boarding – either ‘floating’ on the insulation, or fixed to battens – works well with fitting under-floor heating pipes, but requires adjustment or [more likely] replacement of skirting boards, trimming doors, and likely some form of step.

A much thinner layer of insulation may be possible, e.g. under a carpet, but with much less benefit.

Basements

Many Georgian and Victorian houses contain basements.

With the increasing conversion of the national grid to renewable energy generation, perhaps the best strategy to reduce carbon emissions [after converting heating to an electrical source], is to switch to a 100% renewable supplier. See online comparison sites – e.g which?.

However, some home owners are keen to generate their own renewable power, via Solar PV, wind or even water power.

Solar PV

Solar Installation costs are reducing year by year, and therefore becoming more attractive to home-owners. A small array of panels – up to around 3.5kWp [the measure of peak output on a sunny day] will normally be possible without prior approval by the power supplier.

This may comprise some 10 or so panels, approx 1.7m [5’6″] x 1m[3’3″]. Fitting these onto existing roofs, preferably on a south-facing slope, may be challenging. Any reputable local supplier [registered with MCS] can advise on this, and there are many on-line tools which may help. MCS-certified installers can be found here.

Listed Building Status will likely limit the options for Solar PV. Ensure you check with B&NES conservation dept, or get advice via the links below.

Wind power

This is a far less likely source of generation in most urban locations, and needs specialist advice -e.g Retrofit West and BWCE – see Home Assessments drop-down below.

Water power

Unless your property is next to a water-course, this is unlikely to be an option, and even if it is, would be a very challenging process !

Heat Pumps

Air Source Heat Pumps [and ground-source and water-source] extract the heat in the surrounding environment, by means of electric-powered heat pumps . Their efficiency, measured as the SCOP – Seasonally adjusted Co-efficient Of Performance – determines how much of this heat energy they extract. They are not normally viewed as renewable energy sources in themselves, but should be powered by a renewable energy supply [see above].

Widcombe contains many Listed Buildings, which present special challenges to retrofitting, as any improvements that are judged by the Local Planning Authority [LPA] to affect the character of the building will need Listed Building Consent [LBC].

Historically, this has led to clashes between the aims of energy conservation and heritage conservation. However, recent changes in policy resulting from the climate crisis are placing greater emphasis on energy efficiency to reduce carbon emissions.

Every Listed Building presents a unique set of circumstances, and requires assessment by the LPA’s [B&NES] conservation team.

In response to the Climate Emergency, B&NES Council has developed a new level of pre-application advice, unique in the UK, to help owners of Listed Buildings to make them more energy efficient.

This ‘Service Level Zero’, unlike a standard pre-application, does not require a proposal and is aimed at homeowners who are interested in improving the energy of their listed building but don’t know where to start.

This service is for owners and occupiers of Listed Buildings within Bath and North East Somerset who are looking at ways to improve the energy efficiency of their building. The Conservation Officer will visit the site and provide tailored technical and conservation advice based on your property and the suitability of measures discussed, as well as any other factors such as budget. This service is suitable for the following:

  • Solar panels.
  • Energy saving ‘quick wins’ to save energy and water which may not require Listed Building Consent
  • Draughtproofing
  • Secondary glazing and/or slim-profile double glazing
  • Internal wall, loft, and/or floor insulation
  • External wall insulation
  • Upgrading of existing heating and hot water systems
  • Heat pumps

Bath And West Community Energy, a not-for-profit partner of GGW, work closely with B&NES in this field:

Widcombe lies within the Bath Conservation Area – see below.

This applies another set of planning rules, whether your building is listed or not.

Whilst generally less restrictive than Listed Building status, external changes to a property may well be constrained if they are seen as affecting the character of the area, distinct from the character of the building itself.

In Bath, we also have our World Heritage Area and Cotswolds AONB status, although these are less likely to affect the acceptability of retrofit projects.

To check the Bath Conservation Area and other planning area boundaries, click this link:.

Whilst a few retrofit measures such as draught proofing and loft insulation are suitable for residents to undertake by themselves, or with the help of local tradespeople, in some cases without needing consent, the majority of measures, particularly to older buildings, need professional advice and guidance.

This is necessary to avoid creating new problems, such as reducing uncontrolled ventilation [ie. draughts !] and increasing moisture within the building – potentially very damaging.

Several local Not-for-Profit agencies offer low-cost Home Energy Surveys. These include two of our key partners – RETROFIT WEST and BWCE – see links below for their current offers. GGW strongly advocates such surveys, as a way of providing expert advice and assistance on your ‘retrofit path’…
